Default Big THUMPING Gilon .500 WEBLEY Revolver

Greetings, Gentlemen,

In February of this year, I won on auction, this .500 revolver. May be of interest to you all.

When seller said,” It’s going to take patience, time, and a lot of work to make this into a fine big revolver,” boy was that ever an understatement. The revolver saw an awful lot of abuse in its life time. When I said I have resurrected a lot worse, that was before I tackled this project. I never saw one so badly rusted, and with so many broken and worn out parts. Don’t get me wrong, I love to bring these old revolvers back to life. I will give you a quick rundown of what was done.

First thing was taking it apart. About half of the screws required drilling out. Talk about rusted fast. I never knew screws had so many bad names. It was so badly rusted and pitted, there was no way I would ever get the surfaces smooth without destroying the features and edges. So I opted to just remove the rust. The inside was so bad, it was a wonder it worked at all. Took lots of scrubbing with brass brushes and phosphoric acid. After about a week it was clean.

The cylinder arbor was trashed beyond hope. Made new one from O-1 tool steel. Added a drag spring to it. Had to add a .016 shim between front of cylinder and barrel assembly to achieve some barrel/cylinder gap. Now that the cylinder fit true and without any looseness, the next thing was a correctly fitting hinge screw. Made this, and 11 other screws, from 4140 HT.

The frame latch posts had been hammered on and deformed. ( to tighten latch, I suppose) Refitted latching surfaces to attain proper fit and geometry. This meant making a new latch, and latch spring. Made latch from O-1, and heat treated to 52 Rockwell. Spring from 1075, heat treated and drawn blue. ( 600 degrees) Fitted frame to latch with smooth action and no clearance. So far, so good.

Upon cleaning scale and rust from hammer, I discovered the pivot hole was broken out and spread on the rear. That explains why the hammer wouldn’t retract. About 90% of the full cock notch was broken off. I pressed the hammer pivot hole back together and brazed with Certainium 27 B. ( a very tough and strong hard facing alloy applied with torch. Must be shaped with diamond files or burrs)
Built up the full cock notch using the same method. Now the hammer retracts as the trigger moves forward. The small link that connects to the hammer spring was broken out also. Put it back together and brazed with high temperature silver solder.

The front guard screw hole had been stripped out. The hole was redrilled for a larger screw, which was also stripped. Cause being interference with trigger return spring. The top end of the screw was peened over to hold the guard in place, almost. The interference left a crack in the “V” of the spring. Made new spring from 1075, heat treated and drawn blue. To make the new screw do its job, I made it an 8-32 with a wasp waist so it wouldn’t bind the spring. The screw head is the same diameter as the original.

The cylinder stop on the top of the trigger was mostly worn away. Built up with Certainium 27 B, reshaped and polished. Flat side is timed to line up bore with chambers. Cylinder advancing hand was worn very badly on business end. Built up with Certainium 27 B,
reshaped and polished to lock up with no movement.

All 12 screws were made with crowned heads and crowned ends. All from 4140 HT.

I didn’t want to disturb the initials carved in the right grip panel, so I defined the checkering ever so slightly. The cracks in the grips are reinforced with Elmers glue worked into them. Replaced chip missing from right grip.

I blackened the steel and then buffed with 0000 steel wool to brighten the edges to appear as worn through time.

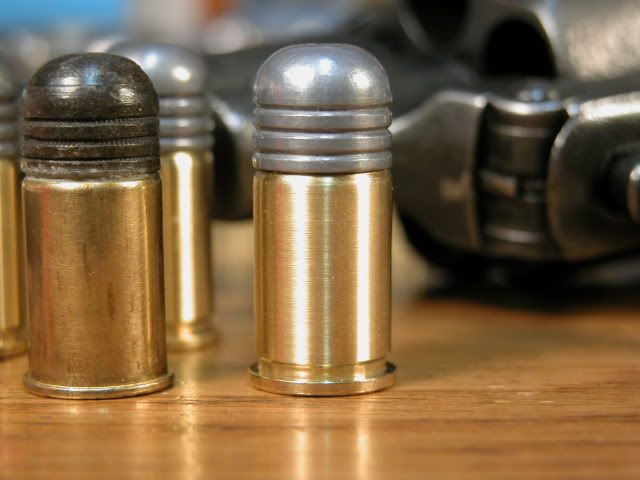

The cartridges are made from .500 S&W brass, turned and shortened. The bullet is made with a Lee custom mold to replicate the original Tranter 340 grain blunt nose. I had some difficulty figuring the weight in the nose, so I made a wild guess. It came out weighing 322 grains. Case holds 22 grains fffg black. Almost done with my loading dies for it. Finished the sizing die today. Will finish the seating die in a day or two. Made the crimper two weeks ago.

Well, there you have it. Very enjoyable on this end. When I work on these old revolvers, I can almost feel the presence of the person who made the revolver, and maybe understand him a little more. He was a real craftsman. Revolver now functions at 100%, and almost smooth as new.

Keep these oldies coming. Perhaps I will live long enough to do a few more.


__________________

Boy, I love these old guns.....
RGH

RGH is offline

Reply With Quote

Join FirearmsTalk.com Today - It's Free!

Are you a firearms enthusiast? Then we hope you will join the community. You will gain access to post, create threads, private message, upload images, join groups and more.

Firearms Talk is owned and operated by fellow firearms enthusiasts. We strive to offer a non-commercial community to learn and share information.

Join FirearmsTalk.com Today! - Click Here


Old 09-17-2010, 06:03 AM   #2
Feedback Score: 0 reviews

M14sRock's Avatar

Join Date: Oct 2008
Location: Los Angeles
Posts: 5,539
Liked 33 Times on 23 Posts
Likes Given: 45

Default

OK, RGH. Seriously?! Haha. You deserve serious props. Great post, great story and great job resurrecting an old war horse.

Let's see some more of your work.

But you made up that whole "Certainium" thing, right?

__________________
NRA-Life
CRPA-Life

SAF-Life
PEIAPOI


"Obama has ordered the launching of more Tomahawk cruise missiles than All the other Nobel Peace Prize winners combined."
M14sRock is offline

Reply With Quote
Old 09-25-2010, 03:17 PM   #3
Feedback Score: 0 reviews

Join Date: Feb 2010
Posts: 1,014
Liked 35 Times on 28 Posts
Likes Given: 9

Default

Great posting and a very nice end result on your project. Would liked to have seen the before pic's of that beast before you restored it. How bout sharing the equipment your using with some of the other "shade tree" machinists in here....

Also... Certainium? Is that any kin to Unobtanium? seriously, never heard of it before. Just curious

__________________
TheOldMan is offline

Reply With Quote
Old 09-25-2010, 07:15 PM   #4
RGH
Feedback Score: 0 reviews

Join Date: Apr 2010
Location: Norwalk,Ohio
Posts: 16
Liked 1 Times on 1 Posts

Default

Greetings, Gentlemen,

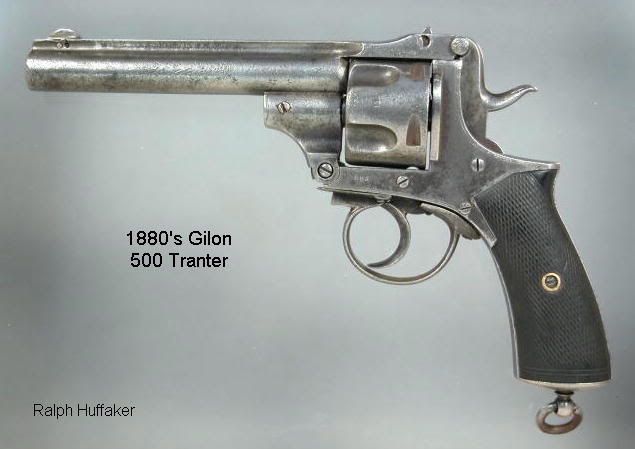

Didn't take photos of damaged parts as I discovered them. Here is photo of revolver before I got it. Neglected to mention it was nickle plated at one time, but almost all of the finish was gone. Can't tell much from photo.



Certanium 27b... My wife and I have run a stamping and fabricating plant since the 1980's. I am the the manufacturing engineer, tool designer and tool maker. Early in the 80's I repaired edges on trimming and blanking dies with hard facing alloys applied with arc welder. Not the easiest in my opinion.

Later on in the 80's, a Certanium rep made a visit to our plant. He brought with him a new product called Certanium 27b. A hard facing alloy applied with gas torch at brazing temperature. To demonstrate, we took a piece of mild steel, 1/4" x 3/4" x 6", and ground one end to a cold chisel point. Then we applied about 1/8" Certanium to the edge. Ground edge sharp and proceded to chisel off bolt heads and other things. The edge maintained it's sharpness without deforming. Amazed this fellow. Bought a pound and used it exclusively ever since.

It comes in 1/8" square sticks 12" long. The first pound I bought cost me $75.00. Pretty expensive but well worth it. Certanium sold out to Lawsons

Welcome to Lawson Products

It is not made anymore, but Lawsons still has new old stock. You have to register with them to get the price to come up and purchase. Last I bought was about 9 months ago at $125.00 per lb.

To use it on small fine parts, I grind a section of the rod down to about 1/16 inch in diameter. Use Certanium 927 black flux or equivelent. Wrap part not to be brazed with wet rags to prevent too much heat transfer. I braze with a micro oxy-acet torch. Cools to 57-61 Rc, 300,000 psi compressive strength.

A little too hard for steel file shaping, but diamond files work great.

__________________

Boy, I love these old guns.....
RGH

RGH is offline

Reply With Quote
Old 09-25-2010, 08:04 PM   #5
Feedback Score: 0 reviews

M14sRock's Avatar

Join Date: Oct 2008
Location: Los Angeles
Posts: 5,539
Liked 33 Times on 23 Posts
Likes Given: 45

Default

Quote:
Originally Posted by RGH View Post
Greetings, Gentlemen,

Didn't take photos of damaged parts as I discovered them. Here is photo of revolver before I got it. Neglected to mention it was nickle plated at one time, but almost all of the finish was gone. Can't tell much from photo.



Certanium 27b... My wife and I have run a stamping and fabricating plant since the 1980's. I am the the manufacturing engineer, tool designer and tool maker. Early in the 80's I repaired edges on trimming and blanking dies with hard facing alloys applied with arc welder. Not the easiest in my opinion.

Later on in the 80's, a Certanium rep made a visit to our plant. He brought with him a new product called Certanium 27b. A hard facing alloy applied with gas torch at brazing temperature. To demonstrate, we took a piece of mild steel, 1/4" x 3/4" x 6", and ground one end to a cold chisel point. Then we applied about 1/8" Certanium to the edge. Ground edge sharp and proceded to chisel off bolt heads and other things. The edge maintained it's sharpness without deforming. Amazed this fellow. Bought a pound and used it exclusively ever since.

It comes in 1/8" square sticks 12" long. The first pound I bought cost me $75.00. Pretty expensive but well worth it. Certanium sold out to Lawsons

Welcome to Lawson Products

It is not made anymore, but Lawsons still has new old stock. You have to register with them to get the price to come up and purchase. Last I bought was about 9 months ago at $125.00 per lb.

To use it on small fine parts, I grind a section of the rod down to about 1/16 inch in diameter. Use Certanium 927 black flux or equivelent. Wrap part not to be brazed with wet rags to prevent too much heat transfer. I braze with a micro oxy-acet torch. Cools to 57-61 Rc, 300,000 psi compressive strength.

A little too hard for steel file shaping, but diamond files work great.
Wow. Why isn't it made anymore?

Will you post more stuff for us?
__________________
NRA-Life
CRPA-Life

SAF-Life
PEIAPOI


"Obama has ordered the launching of more Tomahawk cruise missiles than All the other Nobel Peace Prize winners combined."
M14sRock is offline

Reply With Quote
Old 10-20-2010, 09:30 PM   #6
Feedback Score: 0 reviews

superc's Avatar

Join Date: Feb 2010
Location: Winchester
Posts: 341
Liked 15 Times on 9 Posts
Likes Given: 8

Default

I am in awe. Superb job.

That said, I too like fixing up the oldies. Have done a few, but have limits when evaluating before purchasing. Normally I confine myself to pieces missing a few parts, then scour everywhere till I find them. One (an old uncommon Colt) of mine took decades to locate all of the missing internal parts in like-new condition. Work wise though I don't count time (over a decade) spent waiting for the Internet to be invented, and only count the manual hours spent making phone calls, bargaining, writing letters and checks of purchase and installing the 'new' parts when they came in. I think that Colt DA worked out to being about 20 - 26 hours actual work and maybe $165 in parts, added to the purchase price of $50 in a pawn shop for the frame, cylinder, loading gate, ejector housing, trigger, hammer and barrel (and nothing else). It shoots just fine these days (35 gr. fff, 250 gr. SWC) and I think it was a profitable (pictures) purchase. I probably would have passed on the Trantor however.

Assuming an industry standard of $25 an hour for your work, how much did you spend at the auction for the Trantor before sinking 300 hours of your time into the project?
