Default Need to install a Sling swivel Stud.

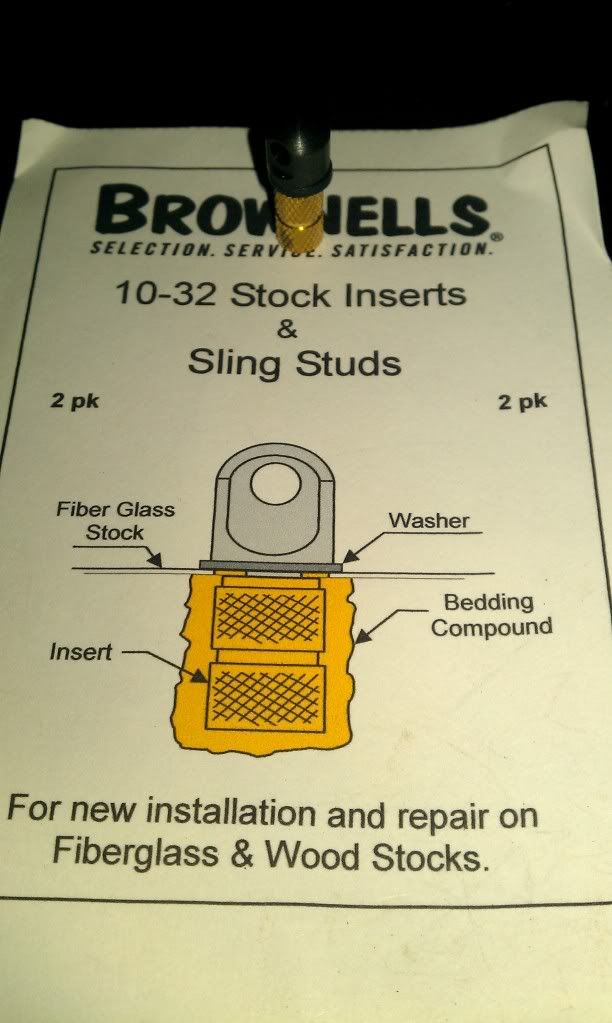

OK I have this.

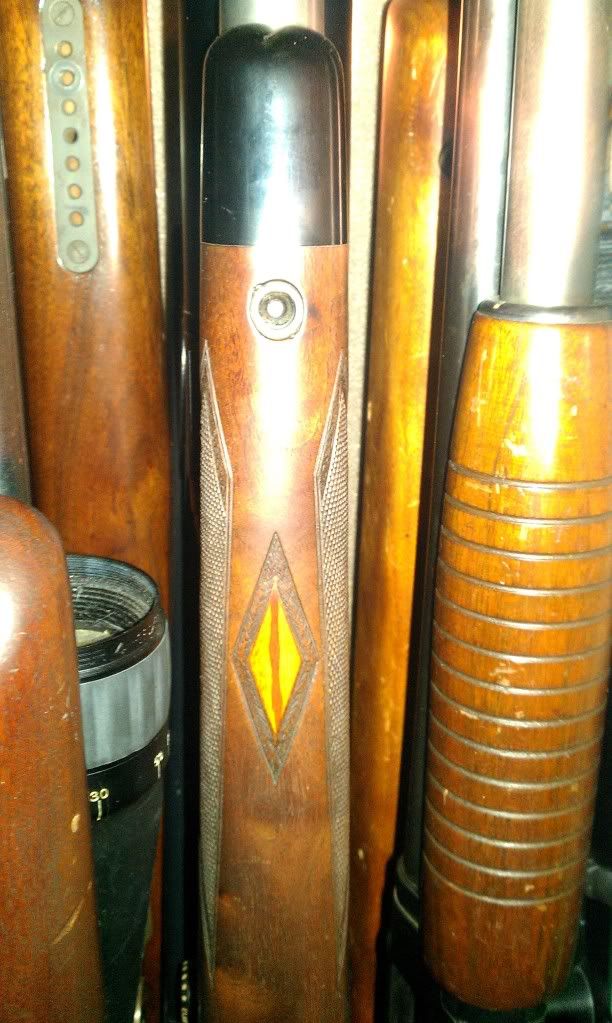

I want to put it on this. (the one in the middle with the white diamond). I figured I would put it half way between the diamond and the other swivel stud.


It says 10-32 What drill size should I use for the hole? What should I use to hold it in the stock? This stud id only going to be used for a bipod.

I was thinking something like this to glue it in. Shop Devcon 0.84-Oz. 5 Minute® Gel Epoxy at Lowes.com

__________________
cpttango30 is offline

Reply With Quote

Join FirearmsTalk.com Today - It's Free!

Are you a firearms enthusiast? Then we hope you will join the community. You will gain access to post, create threads, private message, upload images, join groups and more.

Firearms Talk is owned and operated by fellow firearms enthusiasts. We strive to offer a non-commercial community to learn and share information.

Join FirearmsTalk.com Today! - Click Here


Old 07-27-2011, 11:31 PM   #2
Feedback Score: 0 reviews

CA357's Avatar

Join Date: Nov 2007
Location: Oregon
Posts: 19,871
Liked 1173 Times on 509 Posts
Likes Given: 2978

Default

Any good epoxy should work. As far as the size of the drill bit, I just place the bit next to the piece and use the Mark 1 Eyeball comparison.

__________________
“If ye love wealth better than liberty, the tranquility of servitude better than the animating contest of freedom, go home from us in peace. We ask not your counsels or arms. Crouch down and lick the hands which feed you. May your chains set lightly upon you, and may posterity forget that ye were our countrymen.”Samuel Adams
CA357 is offline

Reply With Quote
Old 07-27-2011, 11:43 PM   #3
Feedback Score: 0 reviews

Join Date: Oct 2007
Location: Stafford, Virginia,The state of insanity.
Posts: 14,043
Liked 33 Times on 28 Posts

Default

Quote:
Originally Posted by CA357 View Post
Any good epoxy should work. As far as the size of the drill bit, I just place the bit next to the piece and use the Mark 1 Eyeball comparison.
Oh I thought I was the only one that did stuff like that. LOL.....
__________________
cpttango30 is offline

Reply With Quote
Old 07-27-2011, 11:46 PM   #4
Feedback Score: 0 reviews

canebrake's Avatar

Join Date: Jan 2009
Location: 150 miles NE of Sloppy Joe's Bar
Posts: 21,941
Liked 1414 Times on 808 Posts
Likes Given: 1290

Default

If you are worried about the epoxy why not go with a screw-in version?

Uncle Mike's Sling Swivel Stud 115 RGS Set - MidwayUSA

__________________
http://i695.photobucket.com/albums/v...brake02jpg.jpg

http://i1060.photobucket.com/albums/...ps18cfbeae.jpg

Get her dirty, then clean her so she starts to respect you. When her trust is complete, she will serve you well for a lifetime!

"...if doves shot back, there wouldn't be a need for a bag limit."
- orangello
canebrake is offline

Reply With Quote
Old 07-28-2011, 12:01 AM   #5
Feedback Score: 0 reviews

Join Date: Oct 2007
Location: Stafford, Virginia,The state of insanity.
Posts: 14,043
Liked 33 Times on 28 Posts

Default

Because that stock is one expensive piece of California Black Walnut.

__________________
cpttango30 is offline

Reply With Quote
Old 07-28-2011, 02:25 AM   #6
Feedback Score: 0 reviews

Gordo323's Avatar

Join Date: Sep 2009
Location: Sometimes in,Utah
Posts: 1,086
Default

Assuming you are removing the stock to do the work, I would drill the hole from the finished side of the stock the same size as the insert.

Then from the inside, dremel out enough material (2X insert dia. ?) to give it a good hold, and I would use the bedding compound as suggested. Protect the finished wood area well with tape or some form of release agent to prevent any overflows from getting on it.

I'm no gunsmith however!

__________________

I swear, by my life and my love of it, that I will never live for the sake of another man, nor ask another man to live for mine.
-Ayn Rand

Gordo323 is offline

Reply With Quote
Old 07-28-2011, 09:42 PM   #7
Feedback Score: 0 reviews

stalkingbear's Avatar

Join Date: Sep 2007
Location: Lebanon,Ky
Posts: 3,621
Liked 10 Times on 9 Posts
Likes Given: 3

Default

The 10x32 part is the metal threads of the stud itself. I'd recommend drilling the hole 1 size bigger than the insert and using Acra-Glas Gel to ensure the insert won't ever come out.

__________________

Sometimes you earthlings REALLY amaze me!

stalkingbear is offline

Reply With Quote
Old 07-28-2011, 09:56 PM   #8
Lifetime Supporting Member
Feedback Score: 0 reviews

TimKS's Avatar

Join Date: May 2010
Location: rural KS
Posts: 382
Liked 38 Times on 26 Posts
Likes Given: 7

Default

Quote:
Originally Posted by Gordo323 View Post
Assuming you are removing the stock to do the work, I would drill the hole from the finished side of the stock the same size as the insert.

Then from the inside, dremel out enough material (2X insert dia. ?) to give it a good hold, and I would use the bedding compound as suggested. Protect the finished wood area well with tape or some form of release agent to prevent any overflows from getting on it.

I'm no gunsmith however!
Good suggestion here.........however, you can just use a larger size drill bit instead of a dremel on the inside.

If you're not removing the stock to do the job, then one size over drilled and epoxy it in place.
__________________
TimKS is offline

Reply With Quote
Old 07-28-2011, 10:01 PM   #9
Feedback Score: 0 reviews

stalkingbear's Avatar

Join Date: Sep 2007
Location: Lebanon,Ky
Posts: 3,621
Liked 10 Times on 9 Posts
Likes Given: 3

Default

He's GOT to remove the stock if he don't want to chance permanently gluing the stock to the barrel! I wouldn't make the hole a full 2x the size of the insert however. The hole can be just a little bigger than the insert.

__________________

Sometimes you earthlings REALLY amaze me!

stalkingbear is offline
